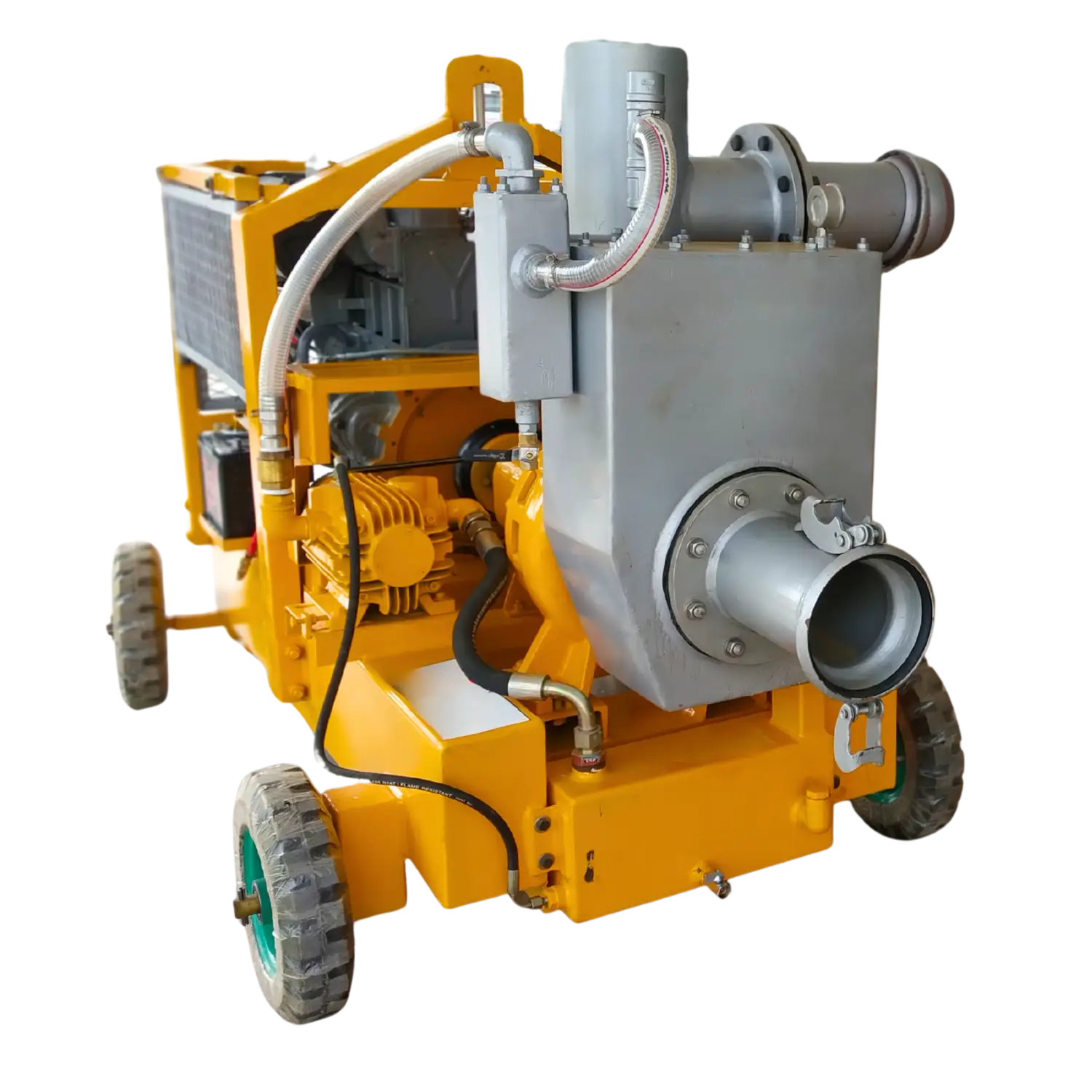

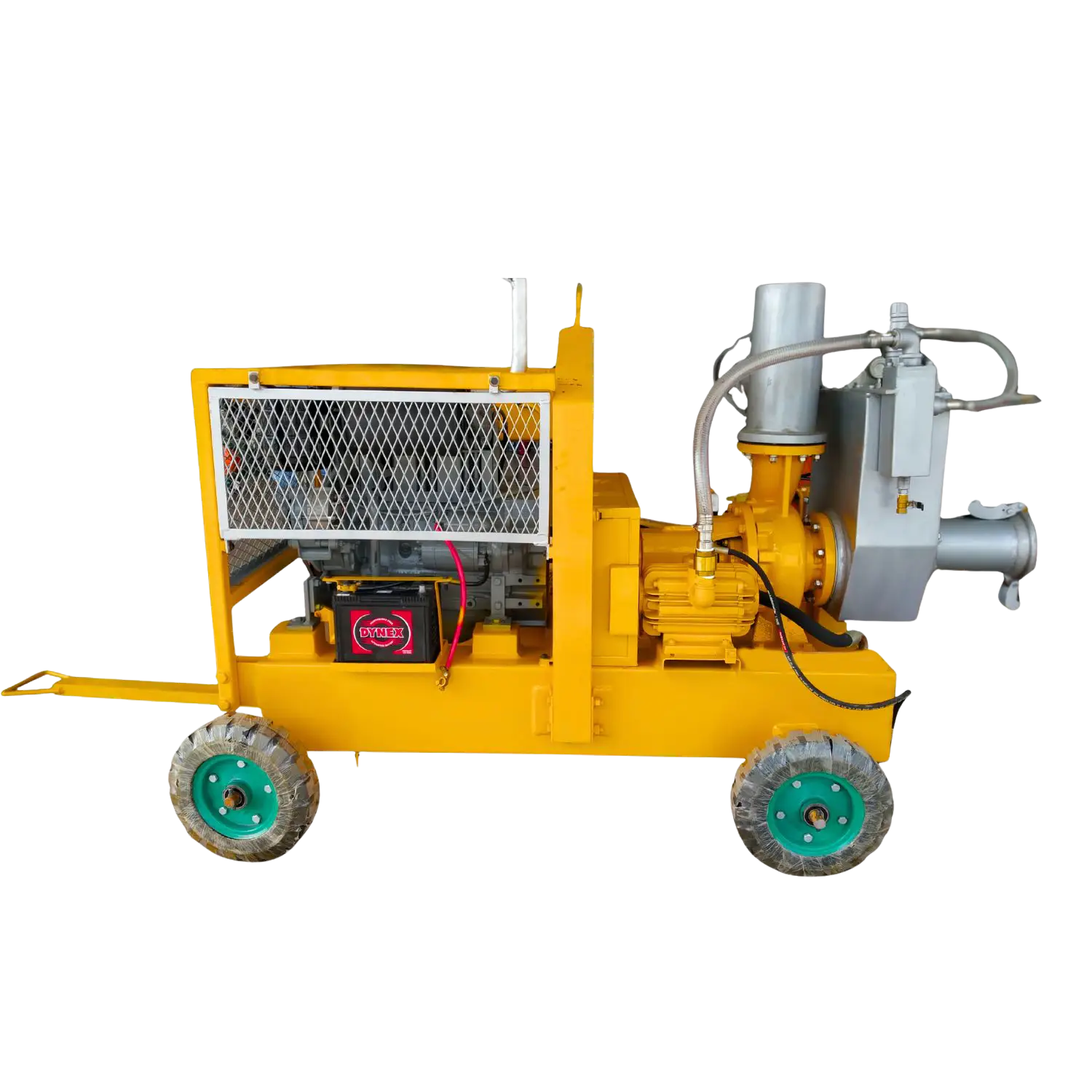

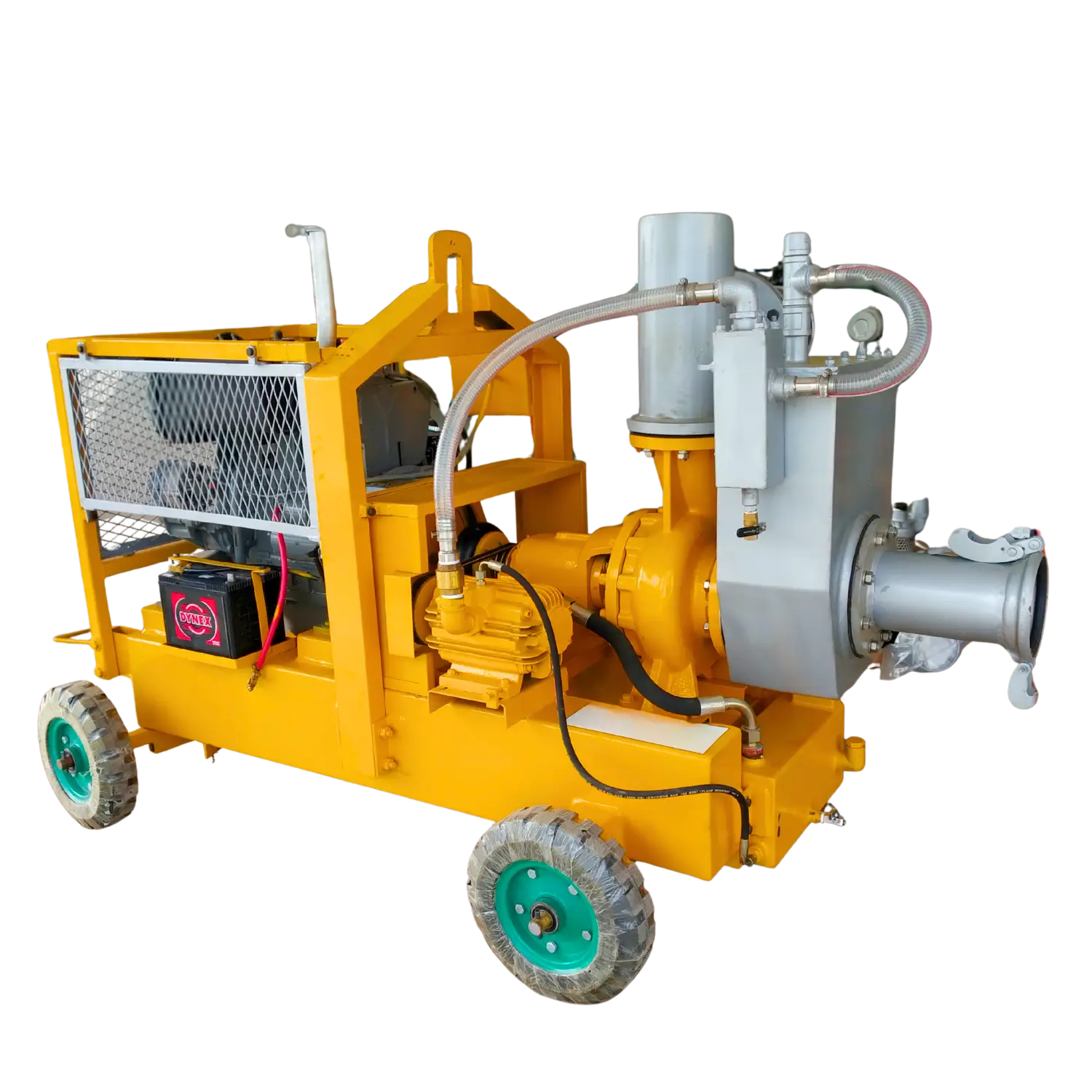

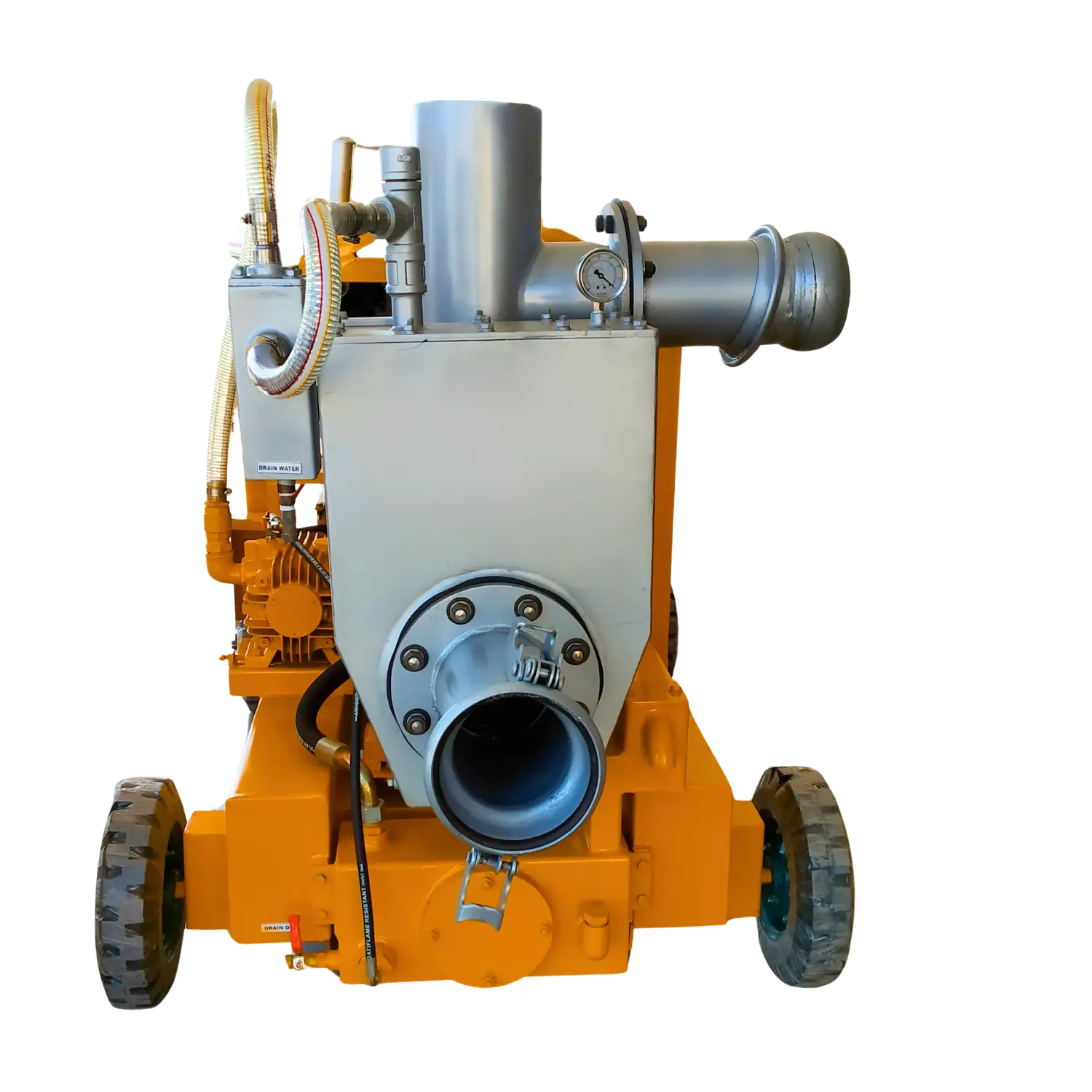

Racors 6 inch dewatering pumps, with model no. Racors-150, in which the priming tank is made of MildSteel /Stainless Steel (Aluminium also available) and the internal parts are of Teflon and Stainless Steel, which increases the life and efficiency of the pump. The volute casing is made of cast iron (stainless steel is also available) and it is designed in such a way that the shape helps to give better discharge. Stainless steel is used for the shaft, impeller, stuffing box, and all other internal components. We are also manufacturing pumps as per customer requirements, like open impeller pumps, electric motor driven pumps, with 2 or4 wheel types, and skid mounted types.
|Vacuum Capacity||70 cfm|
|Max. Water Flow||350 m3/hr|
|Suction x Discharge||6” x 6” (150 mm x 150 mm)|
|Max. Head||40 mtr.|
|Max. Suction lift||9 mtr.
|Max. Solid handling||2”
The pumps are coupled with Kirloskar engines by default. Other engine makes like Deutz, Eicher etc. & electric motors are also available upon request.
||KIRLOSKAR HA 394, 3 Cylinder, Air cooled Diesel Engine|
Electric with starter Motor, Charging Alternator, Oil Bath Air cleaner, fuel Injection Pump, Oil filter, Engine mounted Exhaust Silencer, Manual Shut off, Wire Harness & Starting Panel
