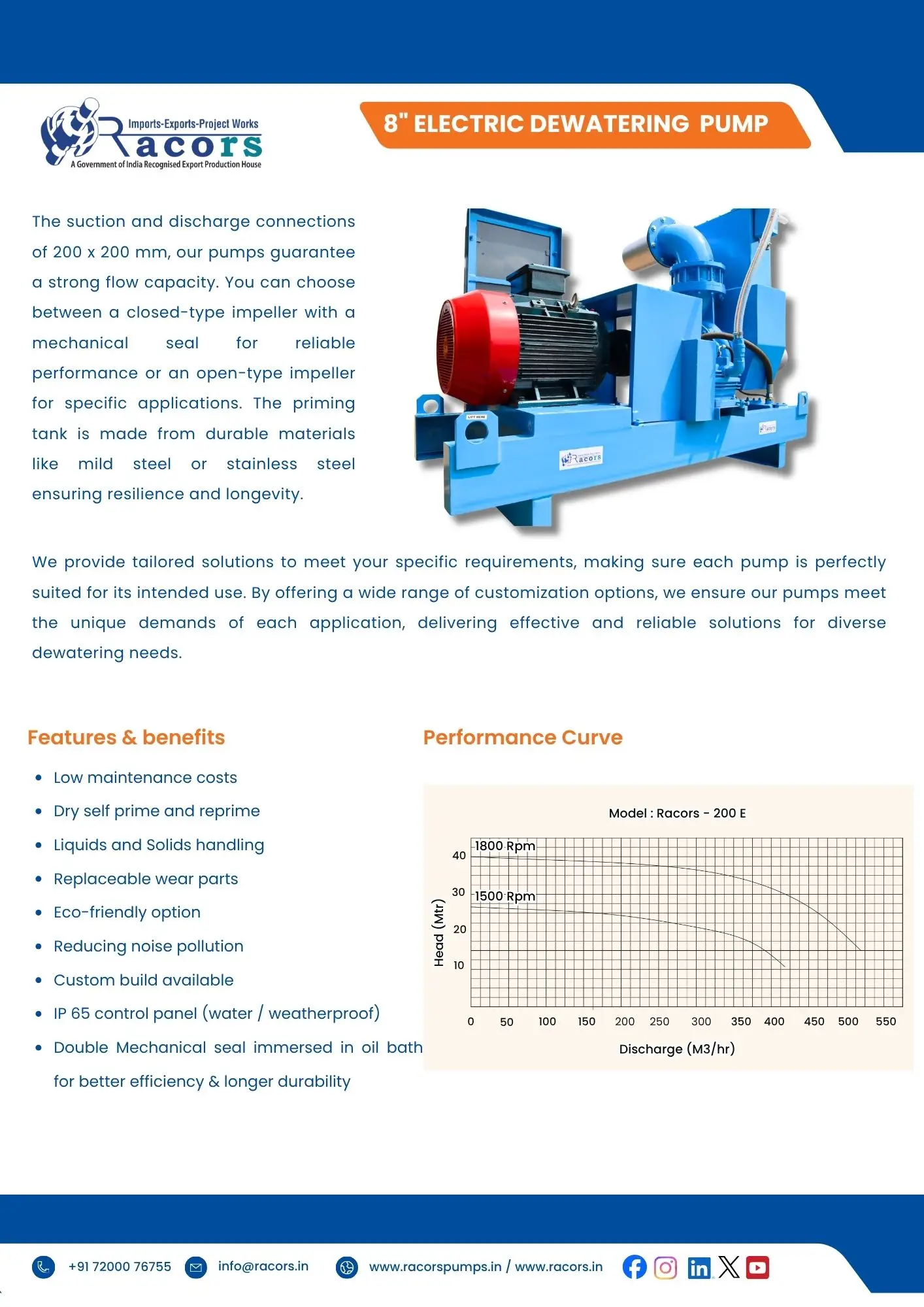

The suction and discharge connections of 200 x 200 mm, our pumps guarantee a strong flow capacity. You can choose between a closed-type impeller with a mechanical seal for reliable performance or an open-type impeller for specific applications. The priming tank is made from durable materials like mild steel or stainless steel ensuring resilience and longevity.
We provide tailored solutions to meet your specific requirements, making sure each pump is perfectly suited for its intended use. By offering a wide range of customization options, we ensure our pumps meet the unique demands of each application, delivering effective and reliable solutions for diverse dewatering needs.

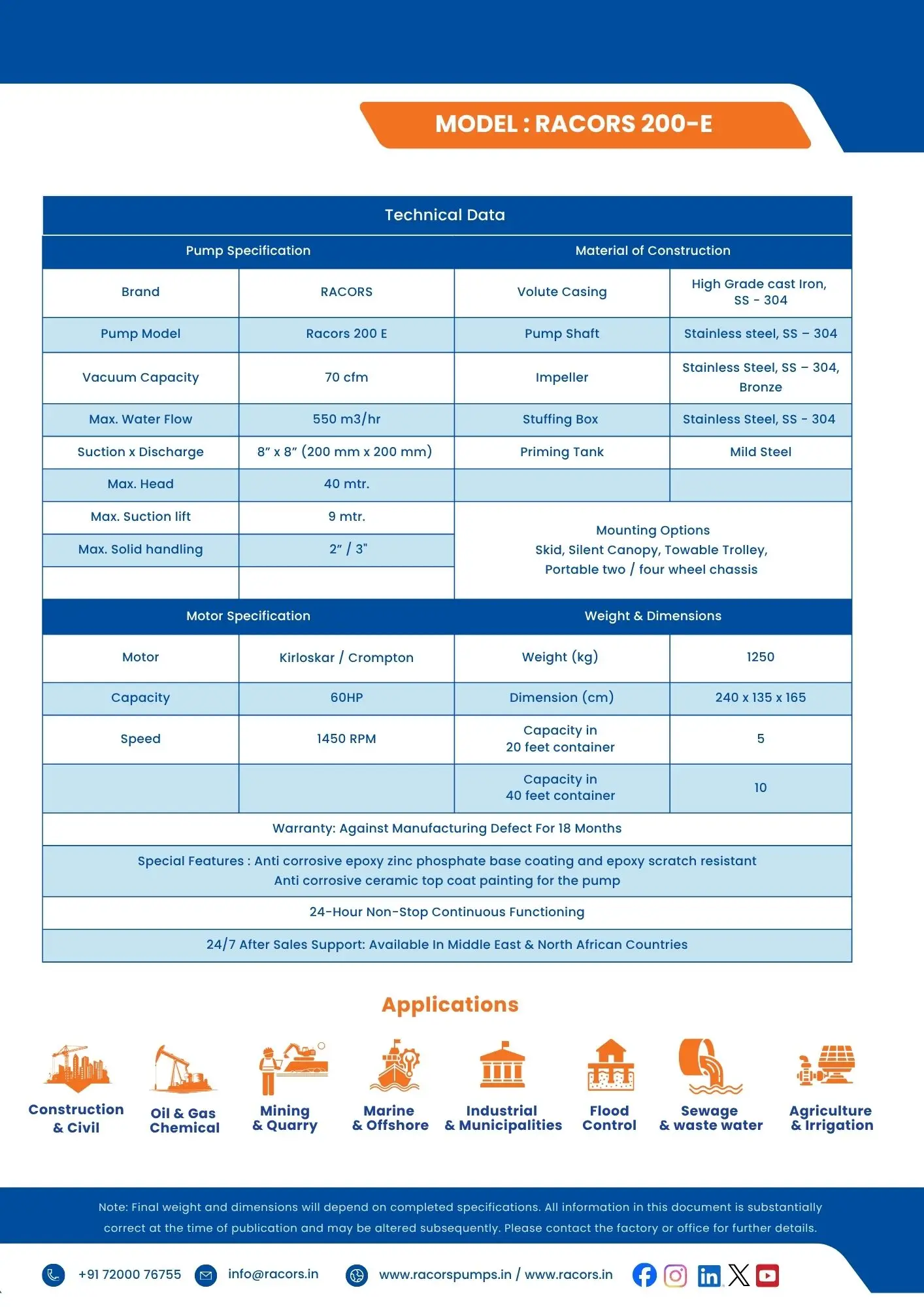

| Pump Specification | Material of Construction | ||
|---|---|---|---|
| Brand | RACORS | Volute Casing | High Grade cast Iron, SS - 304 |
| Pump Model | Racors 200 E | Pump Shaft | Stainless steel, SS – 304 |
| Vacuum Capacity | 70 cfm | Impeller | Stainless Steel, SS – 304, Bronze |
| Max. Water Flow | 550 m3/hr | Stuffing Box | Stainless Steel, SS - 304 |
| Suction x Discharge | 8” x 8” (200 mm x 200 mm) | Priming Tank | Mild Steel |
| Max. Head | 40 mtr. | ||
| Max. Suction lift | 9 mtr. | ||
| Max. Solid handling | 2” / 3" | ||
| Mounting Options Skid, Silent Canopy, Towable Trolley, Portable two / four wheel chassis | |||
| Engine Specification | Weight & Dimensions | ||
| Motor | KIRLOSKAR / CROMPTON | Weight (kg) | 950 |
| Capacity | 60 HP | Dimension (cm) | 230 x 125 x 165 |
| Speed | 1450 RPM | 20/40 feet container | 5/10 |
| Warranty: Against Manufacturing Defect For 18 Months | |||
| Special Features : Anti corrosive epoxy zinc phosphate base coating and epoxy scratch resistant Anti corrosive ceramic top coat painting for the pump | |||
| 24-Hour Non-Stop Continuous Functioning | |||
| 24/7 After Sales Support: Available In Middle East & North African Countries | |||
Core Features
Vacuum- Assisted Self- Priming
Vacuum-assisted self-priming removes air from the suction line, enabling automatic start and continuous operation without manual priming.
Air-Cooled Diesel Engine
An air-cooled diesel engine uses airflow to dissipate heat, eliminating the need for a radiator or liquid cooling system.
Heavy-Duty Skid or Trailer Mounting
Built for durability and easy transport, ensuring stable operation in tough environments.
High Flow Capacity
Delivers efficient, high-volume water removal for demanding dewatering applications.
Low Maintenance Design
Engineered for reliability with minimal upkeep and reduced downtime.
Custom Pump Manufacturing
Tailored solutions designed to meet specific project requirements and operating conditions.
Application
Dewatering pumps play a vital role in removing unwanted water from various environments, ensuring safe, dry, and efficient operations across industries.
Contact Us
Reach out for any inquiries, support, or to discuss how we can meet your industrial needs.
- +91 72000 76755
- info@racors.in
Product Range 2" to 24"
We’re Always Here to Connect — Looking Forward to Your Response!
Ready Stock Available
24/7 After Sales Support
Frequently Asked Questions
A 8-inch electric dewatering pump is a high-capacity pump powered by an electric motor, with 200 mm suction and discharge, designed for removing large volumes of water in construction, industrial, and flood control projects.
- Electric pump:
✔ Low noise
✔ No fuel required
✔ Eco-friendly (zero emissions) - Diesel pump:
✔ Suitable for remote areas
✔ Independent of power supply
Usually ranges from 250 to 1000+ m³/hr depending on motor power and pump design
- Some industrial units can reach very high discharge capacities for large-scale operations
Available in both types:
- Self-priming electric pumps
- Submersible pumps (no priming required)
Yes, depending on the design:
- Handles mud, sand, sludge, and debris
- Solids handling typically 40–75 mm
- Non-clog designs are available for heavy-duty use
- For surface pumps: up to 7–8 meters
- Submersible pumps: no suction limitation (installed directly in water)
✔ Low operating cost (no fuel)
✔ Quiet operation (ideal for urban areas)
✔ Reduced maintenance
✔ Environmentally friendly
